used XCMG wheel loader

BASIC INFO

used XCMG wheel loader

Year: 2010-2022

Loading capacity: 3tons 4tons, 5tons,6tons,7tons

Overall dimensions	Overall length (bucket on the ground)	8165 mm
	Overall width	2850 mm
	Bucket width	3016 mm
	Overall height	3485 mm
	Wheel base	3300 mm
	Tread	2250 mm
	Min. ground clearance	450 mm
Specification	Rated capacity	5000 kg
	Bucket volume	2.5 m3 (Bucket for rock)
		3 m3 (Standard bucket)
		3.5 m3 (Bucket for light material)
		4 m3 (Bucket for light material)
Operating weight		17500kg±300kg
Traveling speeds	ForwardⅠ/Reverse Ⅰ	0~11.5/0~16.5 km/h
	Forward Ⅱ/Reverse Ⅱ	0~38 km/h
	Forward Ⅲ/Reverse Ⅲ
	Forward Ⅳ/Reverse Ⅳ
	Max. tractive force	165±5kN
	Max. climbing gradient	30 º
	Max. dumping angle	45 º
	Max. dumping height	≥3100 mm (main cutting edge)
	Dumping reach	≥1100 mm (main cutting edge)
	Dumping angle of bucket	≥45 º
Max. Breakout force	Breakout force of bucket	170 KN
	Breakout force of lifting	134 KN
	Maximum digging depth	40 mm (the bucket bottom is level)
	Lifting time of boom	≤6 s
	Total cycling time	≤11 s
Min. Turning radius	Outside of the bucket	7300 mm
	Center of the tyre	6400 mm
	Turning angle of the chassis	35 º
	Oscillating angle of the rear axle	±12 º

XCMG provides cost-effective customized services, the solutions and quotations upon receiving your personalized demand.
Engine	Model	WD10G220E11	WD10G220E23	6CTAA8.3-C	SC11CB220G2	SC8DK220G3
	Rated power	162kW	162kW	153kW	162kW	162 kW
	Rated speed	2200r/min	2001r/min	2200r/min	2200r/min	2200r/min
	Max. torque	≥850N.m	900 N.m	≥991 N.m	850 N.m	920 N.m
	Speed	1400~1600r/min	1300~1500r/min	1400r/min	1300r/min	1400~1600r/min
	Rated fuel consumption ratio	≤238g/kW.h	≤210g/kW.h	≤241g/kW.h	230±5%g/kW.h	220±5%g/kW.h

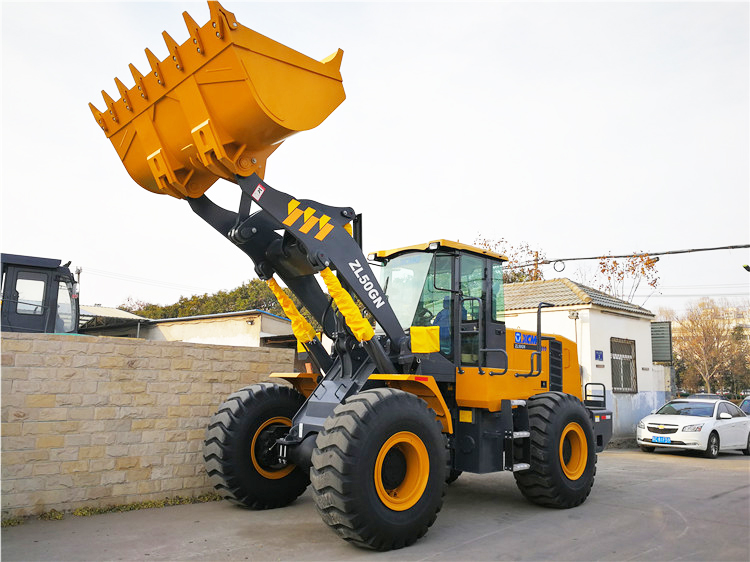

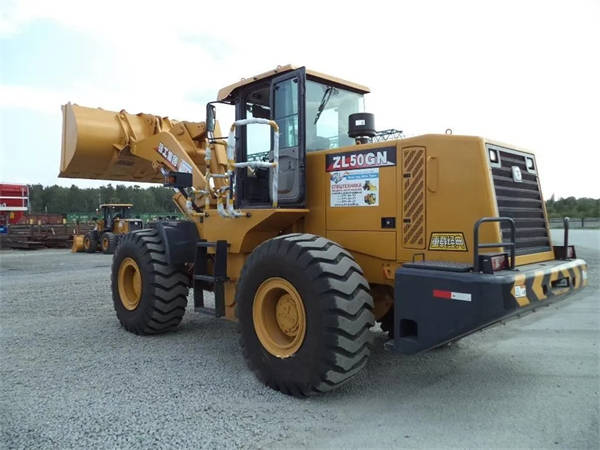

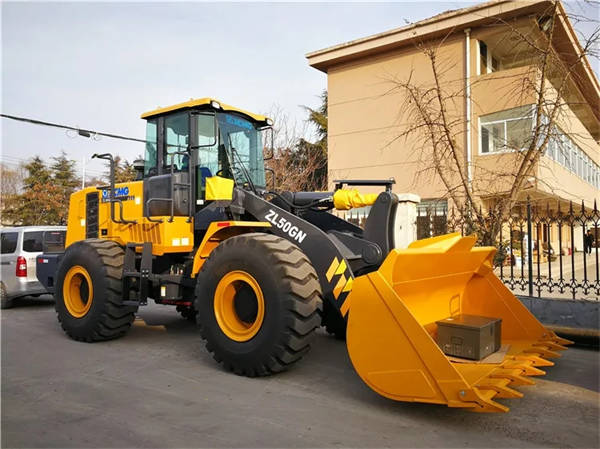

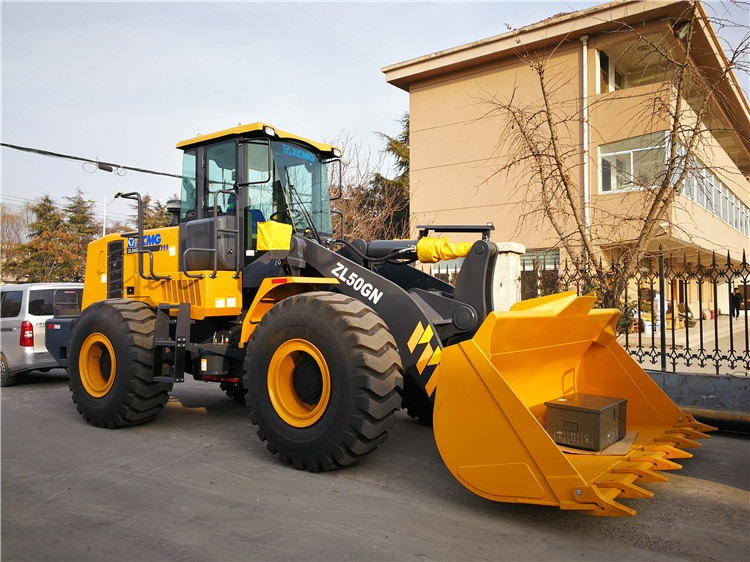

Product Show
