secondhand shacman tractor head

Main Details:

Manufacture Year: 2015-2020

Engine： 375hp,380hp,400hp,430hp

Comfortable and Safe:

The H3000 series uses brand new European TGS cabin technology with improved cabin tightness, sound proofing and insulation making your work day more enjoyable and safer.

1. European ECE-R29 collision test certified
2. Imported curved high strength windshield

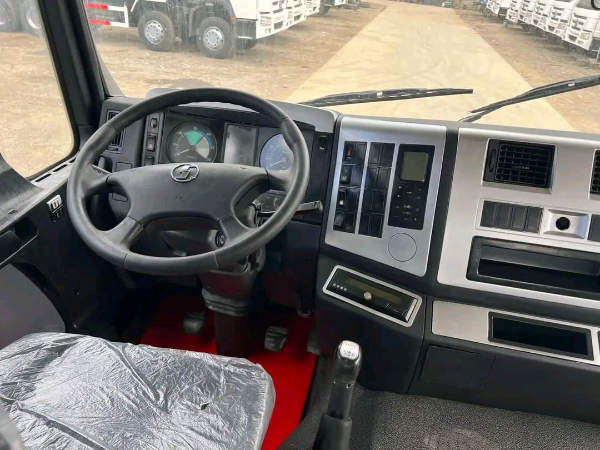

3. Sedan inspired interior design
4. Spacious interior with 8 new storage locations

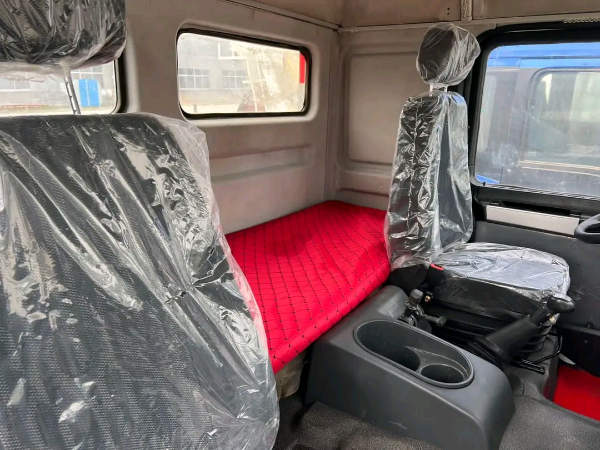

5. Sleeping bed width increased to 750mm
6. Telescopic shaft gear shift mechanism

Details of specifications:

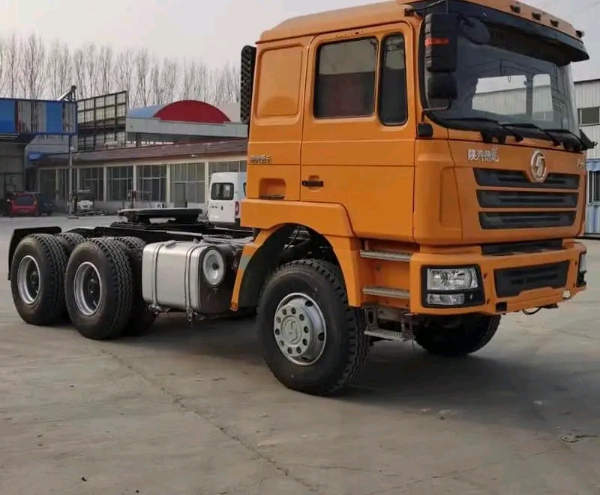

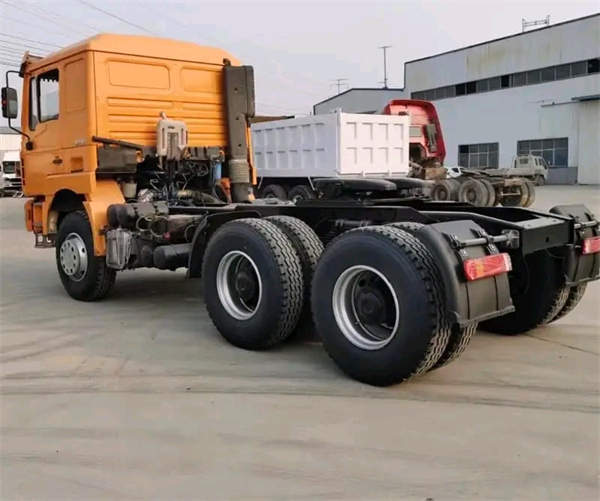

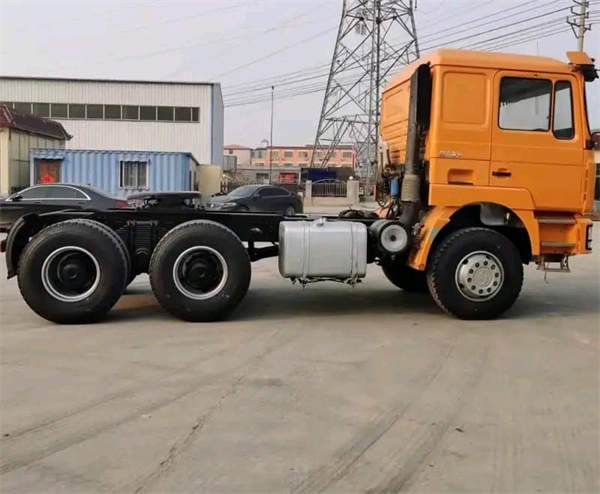

SHACMAN H3000 6×4 380hp Tractor truck

Model: SX4255HT324

Max. running speed (km/h):105

 Drive System: 6×4

Overall  Dimensions (L*W*H(mm):6785×2490×3560

Approach / departure angle (°)20 / 60

Curb weight (kg):8800 Total mass (kg)25000

Wheel base : (mm)3175+1400

Overhang (mm) : (front/rear)1485/725

Track width (mm): (front/rear)2011/ 1800

 Engine : WP10.380E22 ( Weichai Engine, Euro 2) Horsepower 380 hp

Gearbox12JSD200T-B (FAST GEAR), manual, 12F & 2R ClutchФ 430 Diaphragm type

Steering:ZF technology

Cab: H3000 cabin with A/C & single sleeper

 Axle:  Front axle: MAN 7.5T   Rear axle:13 Ton MAN driving axle , final ratio 3.866 Fifth wheel90#

Oil tank(L):400L (ALLOY)

Tyre(radial tyre): 12.00R20(10+1 spare tyre)

Optional: Weichai engine  Hydraulic retarder1000L fuel tank JACOB Engine Brake
